Does EAP-105515 fit the John Deere 8430 MODEL YEAR 1974-1981?

Yes, EAP-105515 (MUFFLER) is compatible with the John Deere 8430 MODEL YEAR 1974-1981. This part ships same day from Eastman, Georgia.

Does EAP-105515 fit the John Deere 8630?

Yes, EAP-105515 (MUFFLER) is compatible with the John Deere 8630. This part ships same day from Eastman, Georgia.

What part numbers does EAP-105515 replace?

Part number EAP-105515 is a direct replacement for: AMAR86604, AR86604, DR-30, R3823, WN-DR30, 102196, 1417-4513.

How much does part number EAP-105515 cost?

EAP-105515 is priced at $691.99 and is in stock. Orders ship same day when placed before 2 PM EST.

Specifications

Part NumberEAP-105515

CategoryMufflers/Exhaust Pipes > Exhaust System Parts

Weight30 lbs

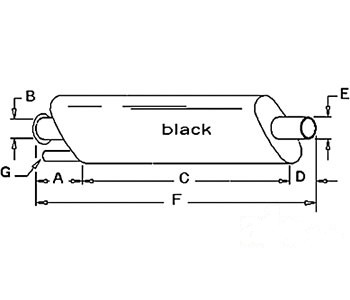

Dimension ADim A (1): A: 3 1/2" INLET LENGTH

Dimension BDim B (2): B: 3 15/16" INLET I.D.

Dimension CDim C (3): C: 30" SHELL LENGTH

Dimension DDim D (4): D: 5" OUTLET LENGTH

Dimension EDim E (5): E: 5" OUTLET O.D.

Dimension FDim F (6): F: 38" OVERALL LENGTH

Dimension GNotes: Vertical / Oval Body - 8" X 11 1/2" Shell Dimension. Muffler Has Straight 1 1/4" O.D. Aspirat

EAP-105515 – MUFFLER. Fits John Deere 8430 MODEL YEAR 1974-1981, 8630. Replaces AMAR86604, AR86604, DR-30, R3823, WN-DR30, 102196

Fits John Deere 8430 MODEL YEAR 1974-1981, 8630 · Replaces AMAR86604, AR86604, DR-30, R3823, WN-DR30, 102196View More

Write a Review

Part # EAP-105515

Our Price

$691.99Ready to Ship

Qty:

Need 10 or more? (478) 374-7717 for bulk pricing.

Specifications

Part NumberEAP-105515

CategoryMufflers/Exhaust Pipes > Exhaust System Parts

Weight30 lbs

Dimension ADim A (1): A: 3 1/2" INLET LENGTH

Dimension BDim B (2): B: 3 15/16" INLET I.D.

Dimension CDim C (3): C: 30" SHELL LENGTH

Dimension DDim D (4): D: 5" OUTLET LENGTH

Dimension EDim E (5): E: 5" OUTLET O.D.

Dimension FDim F (6): F: 38" OVERALL LENGTH

Dimension GNotes: Vertical / Oval Body - 8" X 11 1/2" Shell Dimension. Muffler Has Straight 1 1/4" O.D. Aspirat

Fast Shipping — Same-day dispatch on orders before 2 PM EST

Fitment-Matched Parts — Parts matched to your equipment — 30-day returns if it doesn't fit

30-Day Returns — Eligible unused parts — see return policy for full terms

Compatibility/Fitment

John Deere TRACTOR(s)

8430 MODEL YEAR 1974-1981, 8630

Replaces part number(s)

AMAR86604, AR86604, DR-30, R3823, WN-DR30, 102196, 1417-4513

Specifications

Weight: 30 lbs

Dimension A: Dim A (1): A: 3 1/2" INLET LENGTH

Dimension B: Dim B (2): B: 3 15/16" INLET I.D.

Dimension C: Dim C (3): C: 30" SHELL LENGTH

Dimension D: Dim D (4): D: 5" OUTLET LENGTH

Dimension E: Dim E (5): E: 5" OUTLET O.D.

Dimension F: Dim F (6): F: 38" OVERALL LENGTH

Dimension G: Notes: Vertical / Oval Body - 8" X 11 1/2" Shell Dimension. Muffler Has Straight 1 1/4" O.D. Aspirat
