Specifications
Part NumberEAP-135387
CategoryCooling Systems > Radiators and Related Parts
Weight27.76 lbs
Dimension ADim A (1): Core Size: 18.000" Wide
Dimension BDim B (2): 17.750" High
Dimension CDim C (3): 4 Rows of Tubes
Dimension DDim D (4): 8 Fins per Inch
Dimension EDim E (5): 3 1/4" Thick Core
Dimension FDim F (6): Uses MG850522 Upper & MG9622059 Lower Hose
Dimension GNotes: Bottom radiator hose on RH side sitting in operator's seat. For SN 010393-170000 w/o constru

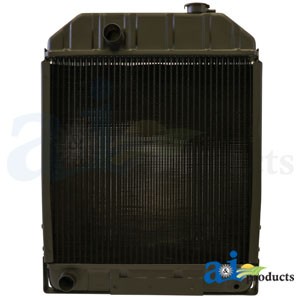

EAP-135387 – RADIATOR. Fits John Deere 675B. Replaces AMMG9828737, AR5729, MG9828737, WN-MG9828737
Fits John Deere 675B · Replaces AMMG9828737, AR5729, MG9828737, WN-MG9828737
Write a Review
Part # EAP-135387
Our Price
$548.99Ready to Ship
Qty:
1
Need 10 or more? (478) 374-7717 for bulk pricing.
Specifications
Part NumberEAP-135387
CategoryCooling Systems > Radiators and Related Parts
Weight27.76 lbs
Dimension ADim A (1): Core Size: 18.000" Wide
Dimension BDim B (2): 17.750" High
Dimension CDim C (3): 4 Rows of Tubes
Dimension DDim D (4): 8 Fins per Inch
Dimension EDim E (5): 3 1/4" Thick Core
Dimension FDim F (6): Uses MG850522 Upper & MG9622059 Lower Hose
Dimension GNotes: Bottom radiator hose on RH side sitting in operator's seat. For SN 010393-170000 w/o constru
Fast Shipping — Same-day dispatch on orders before 2 PM EST
Fitment-Matched Parts — Parts matched to your equipment — 30-day returns if it doesn't fit
30-Day Returns — Eligible unused parts — see return policy for full terms
Compatibility/Fitment
John Deere SKID STEER LOADER(s)
Replaces part number(s)
AMMG9828737, AR5729, MG9828737, WN-MG9828737
Specifications
Weight: 27.76 lbs
Dimension A: Dim A (1): Core Size: 18.000" Wide
Dimension B: Dim B (2): 17.750" High
Dimension C: Dim C (3): 4 Rows of Tubes
Dimension D: Dim D (4): 8 Fins per Inch
Dimension E: Dim E (5): 3 1/4" Thick Core
Dimension F: Dim F (6): Uses MG850522 Upper & MG9622059 Lower Hose
Dimension G: Notes: Bottom radiator hose on RH side sitting in operator's seat. For SN 010393-170000 w/o constru
