Specifications
Part NumberEAP-143277
CategoryFront Axle/Steering Parts > Wheel Hubs and Caps
Weight28.44 lbs
Dimension ADim A (1): 8 Bolt
Dimension BDim B (2): 9.252" Bolt Circle
Dimension CDim C (3): 5.998" Pilot Dia.
Dimension DDim D (4): 6.660" Hub Length
Dimension EDim E (5): 4.592" Inner Bearing Dia.
Dimension FDim F (6): 2.998" Outer Bearing Dia.
Dimension GNotes: For AR109180 Front Axle Kit
Dimension HNotes 2: This hub has M16 bolt holes. For a hub with 5/8" bolt holes see part # R63556.

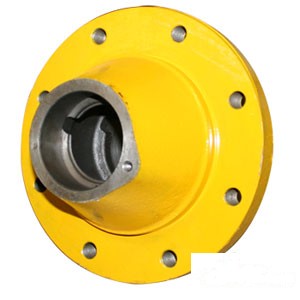

EAP-143277 – HUB FRONT WHEEL. Fits John Deere 4555, 4560, 4650, 4755. Replaces AMR113716, HR113716, R113716, WN-R113716, 160886
Fits John Deere 4555, 4560, 4650, 4755 · Replaces AMR113716, HR113716, R113716, WN-R113716, 160886
Write a Review
Part # EAP-143277
Our Price
$389.99Ready to Ship
Qty:
1
Need 10 or more? (478) 374-7717 for bulk pricing.
Specifications
Part NumberEAP-143277
CategoryFront Axle/Steering Parts > Wheel Hubs and Caps
Weight28.44 lbs
Dimension ADim A (1): 8 Bolt
Dimension BDim B (2): 9.252" Bolt Circle
Dimension CDim C (3): 5.998" Pilot Dia.
Dimension DDim D (4): 6.660" Hub Length
Dimension EDim E (5): 4.592" Inner Bearing Dia.
Dimension FDim F (6): 2.998" Outer Bearing Dia.
Dimension GNotes: For AR109180 Front Axle Kit
Dimension HNotes 2: This hub has M16 bolt holes. For a hub with 5/8" bolt holes see part # R63556.
Fast Shipping — Same-day dispatch on orders before 2 PM EST
Fitment-Matched Parts — Parts matched to your equipment — 30-day returns if it doesn't fit
30-Day Returns — Eligible unused parts — see return policy for full terms
Compatibility/Fitment
Replaces part number(s)
AMR113716, HR113716, R113716, WN-R113716, 160886
Specifications
Weight: 28.44 lbs
Dimension A: Dim A (1): 8 Bolt
Dimension B: Dim B (2): 9.252" Bolt Circle
Dimension C: Dim C (3): 5.998" Pilot Dia.
Dimension D: Dim D (4): 6.660" Hub Length
Dimension E: Dim E (5): 4.592" Inner Bearing Dia.
Dimension F: Dim F (6): 2.998" Outer Bearing Dia.
Dimension G: Notes: For AR109180 Front Axle Kit
Dimension H: Notes 2: This hub has M16 bolt holes. For a hub with 5/8" bolt holes see part # R63556.
