Specifications
Part NumberEAP-165967
CategoryEngine Parts > 8045.25 Diesel
Weight2.01 lbs
Dimension ACompression Height: 2.565" / 65.15 MM
Dimension BCrown Diameter: 4.069" / 103.340 MM
Dimension CDiameter: Chamber: 2.244" / 57 MM; Chamber Depth: .884" / 22.45 MM
Dimension DPin Diameter: 1.496" / 38 MM
Dimension ERing Grooves: 3
Dimension FHeight: 4.276" / 108.60 MM

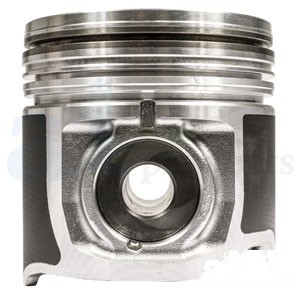

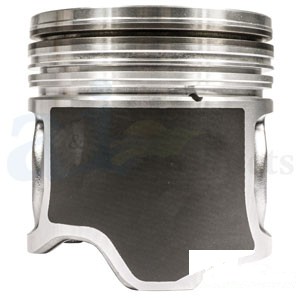

EAP-165967 – PISTON W/ RINGS; STD. Fits Case-IH / International JX90U. Fits Ford / New Holland 6635, 7635, TL90. Replaces 1930919
Fits Case-IH / International JX90U · Fits Ford / New Holland 6635, 7635, TL90 · Replaces 1930919
Write a Review
Part # EAP-165967
Our Price
$159.99Ready to Ship
Qty:
1
Need 10 or more? (478) 374-7717 for bulk pricing.
Specifications
Part NumberEAP-165967
CategoryEngine Parts > 8045.25 Diesel
Weight2.01 lbs
Dimension ACompression Height: 2.565" / 65.15 MM
Dimension BCrown Diameter: 4.069" / 103.340 MM
Dimension CDiameter: Chamber: 2.244" / 57 MM; Chamber Depth: .884" / 22.45 MM
Dimension DPin Diameter: 1.496" / 38 MM
Dimension ERing Grooves: 3
Dimension FHeight: 4.276" / 108.60 MM
Fast Shipping — Same-day dispatch on orders before 2 PM EST
Fitment-Matched Parts — Parts matched to your equipment — 30-day returns if it doesn't fit
30-Day Returns — Eligible unused parts — see return policy for full terms
Compatibility/Fitment
Replaces part number(s)
1930919
Specifications
Weight: 2.01 lbs
Dimension A: Compression Height: 2.565" / 65.15 MM
Dimension B: Crown Diameter: 4.069" / 103.340 MM
Dimension C: Diameter: Chamber: 2.244" / 57 MM; Chamber Depth: .884" / 22.45 MM
Dimension D: Pin Diameter: 1.496" / 38 MM
Dimension E: Ring Grooves: 3
Dimension F: Height: 4.276" / 108.60 MM
