Specifications
Part NumberEAP-165977
CategoryEngine Parts > 8045.05 Diesel
Weight4.41 lbs
Dimension ACompression Height: 2.572" / 65.33 MM
Dimension BCrown Diameter: 4.092" / 103.940 MM
Dimension CDiameter: Chamber: 2.343" / 59.50 MM; Chamber Depth: .842" / 21.40 MM
Dimension DPin Diameter: 1.496" / 38 MM
Dimension ERing Grooves: 3
Dimension FHeight: 4.107" / 104.33 MM

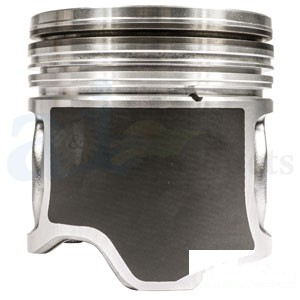

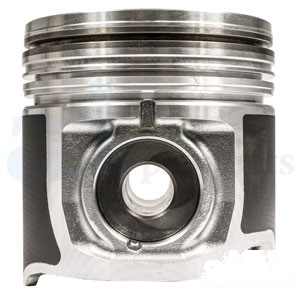

EAP-165977 – PISTON W/ RINGS; +0.60 MM. Fits Case-IH / International JX80, JX85. Fits Ford / New Holland 4835, 5635, TL80. Replaces 1931003
Fits Case-IH / International JX80, JX85 · Fits Ford / New Holland 4835, 5635, TL80 · Replaces 1931003
Write a Review
Part # EAP-165977
Our Price
$156.99Ready to Ship
Qty:
1
Need 10 or more? (478) 374-7717 for bulk pricing.
Specifications
Part NumberEAP-165977
CategoryEngine Parts > 8045.05 Diesel
Weight4.41 lbs
Dimension ACompression Height: 2.572" / 65.33 MM
Dimension BCrown Diameter: 4.092" / 103.940 MM
Dimension CDiameter: Chamber: 2.343" / 59.50 MM; Chamber Depth: .842" / 21.40 MM
Dimension DPin Diameter: 1.496" / 38 MM
Dimension ERing Grooves: 3
Dimension FHeight: 4.107" / 104.33 MM
Fast Shipping — Same-day dispatch on orders before 2 PM EST
Fitment-Matched Parts — Parts matched to your equipment — 30-day returns if it doesn't fit
30-Day Returns — Eligible unused parts — see return policy for full terms
Compatibility/Fitment
Replaces part number(s)
1931003
Specifications
Weight: 4.41 lbs
Dimension A: Compression Height: 2.572" / 65.33 MM
Dimension B: Crown Diameter: 4.092" / 103.940 MM
Dimension C: Diameter: Chamber: 2.343" / 59.50 MM; Chamber Depth: .842" / 21.40 MM
Dimension D: Pin Diameter: 1.496" / 38 MM
Dimension E: Ring Grooves: 3
Dimension F: Height: 4.107" / 104.33 MM
