Specifications
Part NumberEAP-193722
CategoryEngine Parts > Iveco NEF 4.5 Diesel
Weight5.52 lbs
Dimension ACompression Height: 2.457" / 62.40 MM
Dimension BCrown Diameter: 4.086" / 103.780 MM
Dimension CDiameter: Chamber: 2.441" / 62 MM; Chamber Depth: .937" / 23.80 MM
Dimension DPin Diameter: 1.496" / 38 MM
Dimension ERing Grooves: 3

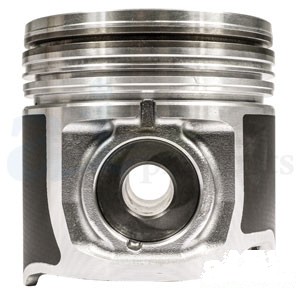

EAP-193722 – PISTON W/ RINGS; +0.40 MM. Fits Case-IH / International JX1070U, JX1080U. Fits Ford / New Holland 5610S, 6610S, 7610S, TL70A. Replaces 87317243
Fits Case-IH / International JX1070U, JX1080U · Fits Ford / New Holland 5610S, 6610S, 7610S, TL70A · Replaces 87317243
Write a Review
Part # EAP-193722
Our Price
$153.99Ready to Ship
Qty:
1
Need 10 or more? (478) 374-7717 for bulk pricing.
Specifications
Part NumberEAP-193722
CategoryEngine Parts > Iveco NEF 4.5 Diesel
Weight5.52 lbs
Dimension ACompression Height: 2.457" / 62.40 MM
Dimension BCrown Diameter: 4.086" / 103.780 MM
Dimension CDiameter: Chamber: 2.441" / 62 MM; Chamber Depth: .937" / 23.80 MM
Dimension DPin Diameter: 1.496" / 38 MM
Dimension ERing Grooves: 3
Fast Shipping — Same-day dispatch on orders before 2 PM EST
Fitment-Matched Parts — Parts matched to your equipment — 30-day returns if it doesn't fit
30-Day Returns — Eligible unused parts — see return policy for full terms
Compatibility/Fitment
Replaces part number(s)
87317243
Specifications
Weight: 5.52 lbs
Dimension A: Compression Height: 2.457" / 62.40 MM
Dimension B: Crown Diameter: 4.086" / 103.780 MM
Dimension C: Diameter: Chamber: 2.441" / 62 MM; Chamber Depth: .937" / 23.80 MM
Dimension D: Pin Diameter: 1.496" / 38 MM
Dimension E: Ring Grooves: 3
